Horizontal CNC lathe with linear guideway, triangular saddle

Product Features

• The bed of this series is made of integral casting with aging treatment, ensuring stable structure and high rigidity.
• Adopting a 30° inclined triangular saddle to enhance rigidity, both X and Z axes are equipped with linear roller guideways and fitted with guideway wipers, which reduce intrusion of foreign matter into the guideway sliders, extend the service life of the
• This series adopts integrally welded external guards and movable internal guards, significantly enhancing the overall stability of the sheet metal and machine bed. It effectively prevents chips, cutting fluid, and other contaminants from entering the ball

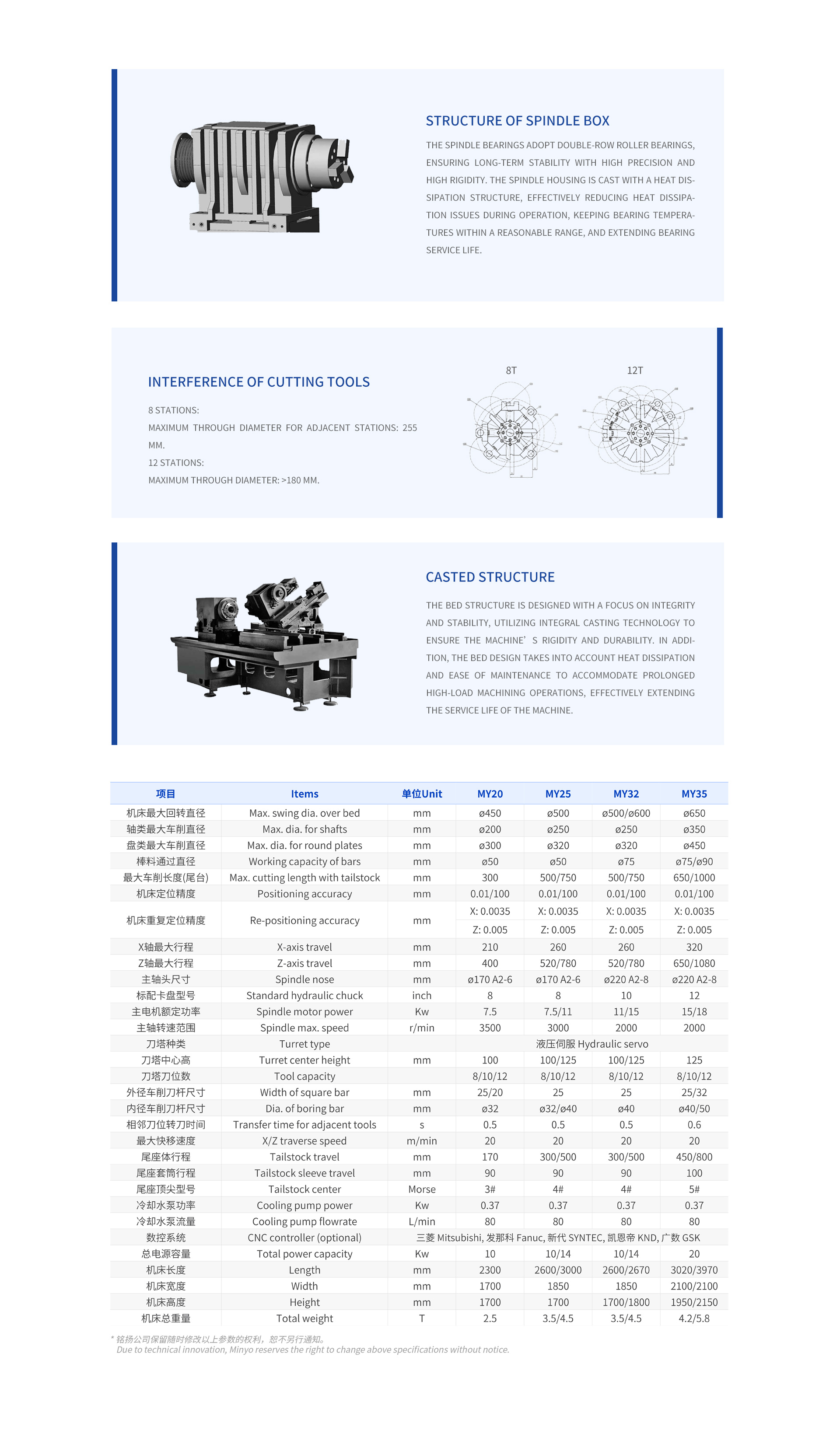

• The headstock is standardly equipped with a combination of three front and one rear double-row roller bearings to increase rigidity. A double-layer sealing structure ensures a proper operating environment for the bearings, thereby ensuring bearing life.
• The tool post adopts a hydraulic servo turret, available with 8, 10, or 12 stations to meet customer requirements. It can also be equipped with special-shaped through-coolant tool holders such as those for U-drills.
• Tailstock (optional) adopts a hydraulic center with extension and retraction control, and also supports programmable code control for center extension and retraction.
