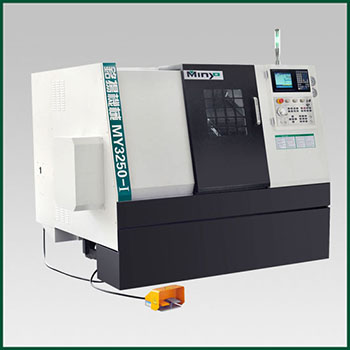

CNC lathe with linear guideway, slant bed
|
|
MY32 Series
 The machine features
MY3250-1, MY3265, MY3280
Structural features: one-piece casting structure with slant bed, linear guideway, flat saddle, horizontal servo turret.
Machine advantage: rapid traverse speed, high machining accuracy, smooth chip removal, excellent rigidity, high reliability, good versatility.
Be fit for machining all kinds of axle/shaft and plate/disk within machine's technical specification.
| 项目 Items |
|
MY3250-1 |
MY3265 |
MY3280 |
| 机床最大回转直径 Max Swing Diameter |
mm |
ø520 |
ø650 |
ø800 |
| 轴类最大车削直径 Max Diameter of Axle/Shaft |
mm |
ø250 |
ø350 |
ø450 |
| 盘类最大车削直径 Max Diameter of Plate/Disk |
mm |
ø320 |
ø450 |
ø600 |
| 棒料通过直径 Working Capacity of Bars |
mm |
ø49 |
ø69 |
ø89 |
| 最大车削长度 Max Cutting Length |
mm |
500/700 |
600/1000 |
1000/1500 |
| 机床定位精度 Positioning Accuracy |
mm |
0.01/100 |
0.01/100 |
0.01/100 |
| 机床重复定位精度 Repositioning Accuracy |
mm |
X: 0.0035 |
X: 0.0035 |
X: 0.0035 |
|
Z: 0.005 |
Z: 0.005 |
Z: 0.005 |
| X轴最大行程 X Axis Travel |
mm |
260 |
350 |
350 |
| Z轴最大行程 Z Axis Travel |
mm |
550/760 |
680/1100 |
1100/1600 |
| 主轴头尺寸 Spindle Size |
mm |
ø170 A2-6 |
ø220 A2-8 |
ø380 A2-11 |
| 标配卡盘型号 Standard Chuck Model |
inch |
8 |
12 |
15 |

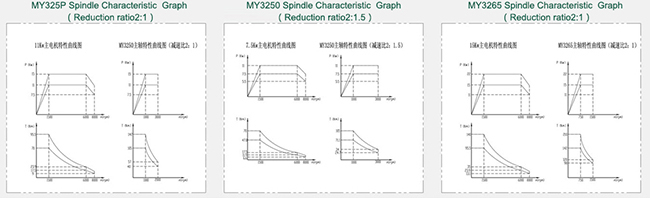

| 主电机额定功率 Spindle Motor Power |
Kw |
7.5/11 |
11/15 |
18/22 |
| 主轴转数范围 Spindle Speed Range |
r/min |
3000 |
2000 |
1500 |
| 刀塔种类 Turret Type |
|
液压伺服 Hydraulic servo |
| 刀塔中心高 Turret Height |
mm |
125 |
125 |
160 |
| 刀塔刀位数 Capacity of Tool Turret |
|
8/12 |
8/12 |
8/12 |
| 外径车削刀杆尺寸 Size of OD Turning Tool Bar |
mm |
25 |
25 |
32 |
| 内径车削刀杆尺寸 Size of Boring Bar |
mm |
ø40 |
ø40 |
ø50 |
相邻刀位转刀时间
Adjacent Tool Transferring Time |
S |
0.5 |
0.6 |
1 |
| 最大快移速度 Max Moving Speed |
m/min |
20 |
20 |
20 |
| 尾座体行程 Tailstock Travel |
mm |
300/500 |
400/750 |
700/1200 |
| 尾座套筒行程 Tailstock Sleeve Travel |
mm |
90 |
90 |
120 |
| 尾座顶尖型号 Tailstock Center |
Morse |
4# |
5# |
|
| 冷却水泵功率 Cooling Pump Power |
Kw |
0.55 |
0.55 |
0.55 |
| 冷却水泵流量 Cooling Pump Flow Rate |
L/min |
80 |
80 |
80 |
| 数控系统 CNC System |
|
三菱 Mitsubishi E70/ 发那科 Fanuc/ 凯恩帝 KND |
| 主轴驱动伺服单元 Spindle Driver Server Unit |
Kw |
7.5 |
11/15 |
18/22 |
总电源容量（连续加工时）
Total Power Capacity |
Kw |
10 |
15/18 |
26 |
| 机床长度 Length |
mm |
2300/2700 |
2400/2900 |
3500 |
| 机床宽度 Width |
mm |
1650 |
1850 |
2000 |
| 机床高度 Height |
mm |
1850 |
1900 |
2000 |
| 机床总重量 Total Weight |
T |
4.3/5.5 |
5/7 |
7/9 |
本公司保留随时修改的权利，订货时以技术协议为准。
Minyo reserves the right to change above specifications due to technical innovation, which should be subject to the final order's technology agreement.
|
|
|
|
|
 |
|
