Vertical CNC lathe

MY51 Series

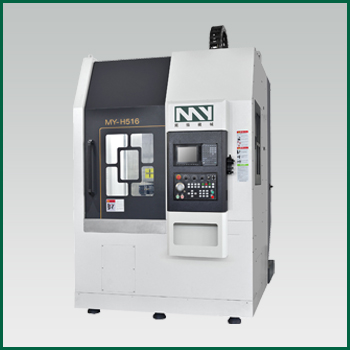

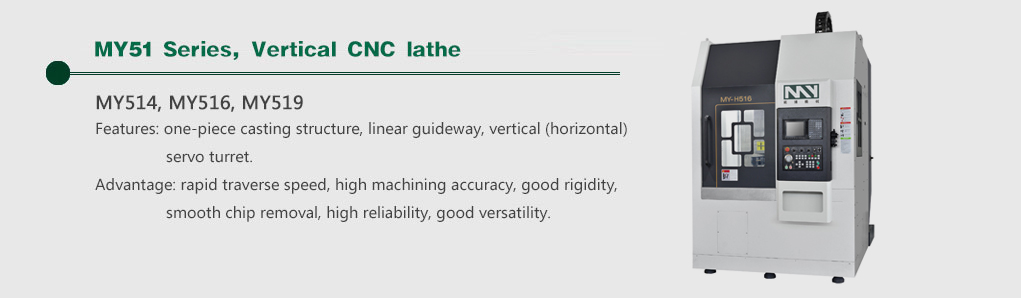

The machine features

MY514, MY516, MY519

Structural features: one-piece casting structure, linear guideway, vertical (horizontal) servo turret.
Machine advantage: rapid traverse speed, high machining accuracy, good rigidity, smooth chip removal, high reliability, good versatility.

Be fit for machining all kinds of plate/disk and short axle/shaft within machine's technical specification.

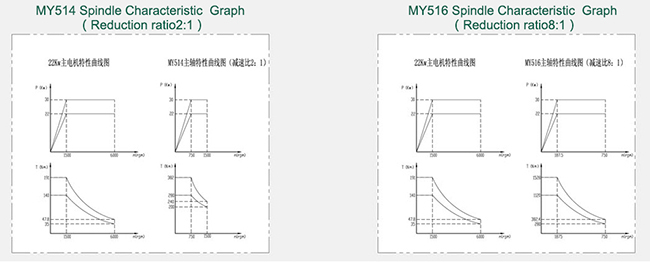

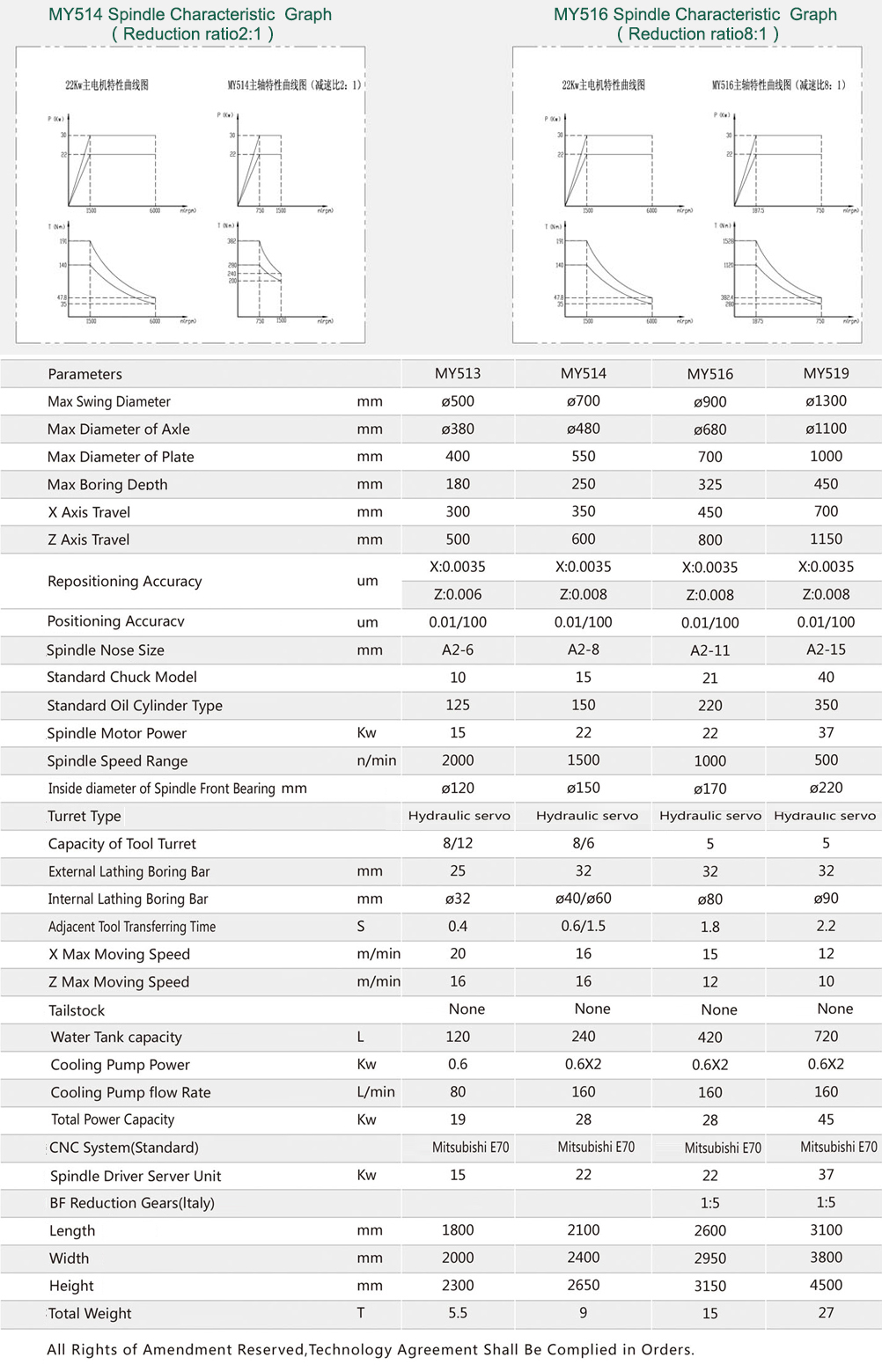

项目 Items		MY513	MY514	MY516	MY519
机床最大回转直径 Max Swing Diameter	mm	ø500	ø700	ø900	ø1300
最大车削直径 Max Turning Diameter	mm	ø380	ø480	ø680	ø1100
最大车削高度 Max Turning Height	mm	400	550	700	1000
最大镗孔深度 Max Boring Depth	mm	180	250	325	450
X轴最大行程 X Axis Travel	mm	300	350	450	700
Z轴最大行程 Z Axis Travel	mm	500	600	800	1150
机床重复定位精度 Repositioning Accuracy	mm	X: 0.0035	X: 0.0035	X: 0.0035	X: 0.0035
机床重复定位精度 Repositioning Accuracy	mm	Z: 0.006	Z: 0.008	Z: 0.008	Z: 0.008
机床定位精度 Positioning Accuracy	mm	0.01/100	0.01/100	0.01/100	0.01/100
主轴头尺寸 Spindle Size	mm	A2-6	A2-8	A2-11	A2-15
标配卡盘型号 Standard Chuck Model	inch	10	15	21	40
标配油缸型号 Standard Oil Cylinder Type		125	150	220	350
主电机额定功率 Spindle Motor Power	Kw	15	22	22	37
主轴转数范围 Spindle Speed Range	r/min	2000	1500	1000	500
主轴前轴承内径 ID of Spindle Front Bearing	mm	ø120	ø150	ø170	ø220
刀塔种类 Turret Type		卧式液压伺服 Horizontal hydraulic servo	卧式/立式液压伺服 Horizontal/Vertical hydraulic servo	立式液压伺服 Vertical hydraulic servo
刀塔刀位数 Capacity of Tool Turret		8/12	8/6	5	5
外径车削刀杆尺寸 Size of OD Turning Tool Bar	mm	25	32	32	32
内径车削刀杆尺寸 Size of Boring Bar	mm	ø32	ø40/ø60	ø80	ø90
相邻刀位转刀时间 Adjacent Tool Transferring Time	S	0.4	0.6/1.5	1.8	2.2
X最大快移速度 X Max Moving Speed	m/min	20	16	15	12
Z最大快移速度 Z Max Moving Speed	m/min	16	16	12	10
尾座体 Tailstock		无 None
切削水箱容量 Water Tank capacity	L	120	240	420	720
冷却水泵功率 Cooling Pump Power	Kw	0.6	0.6*2	0.6*2	0.6*2
冷却水泵流量 Cooling Pump Flow Rate	L/min	80	160	160	160
总电源容量(连续加工时)Total Power Capacity	Kw	19	28	28	45
数控系统 CNC System		三菱 Mitsubishi E70/ 发那科 Fanuc/ 凯恩帝 KND
主轴驱动伺服单元 Spindle Driver Server Unit	Kw	15	22	22	37
BF减速机 (意大利) BF Reduction Gears (ltaly)		无 None	无 None	1:5	1:5
机床长度 Length	mm	1800	2100	2600	3100
机床宽度 Width	mm	2000	2400	2950	3800
机床高度 Height	mm	2300	2650	3150	4500
机床总重量 Total Weight	T	5.5	9	15	27

本公司保留随时修改的权利，订货时以技术协议为准。
Minyo reserves the right to change above specifications due to technical innovation, which should be subject to the final order's technology agreement.
