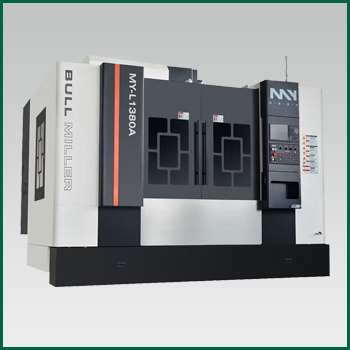

Vertical CNC Machining Center
|
|
MYL850 MYL1060 MYL1270 Series
 The machine features
MYL850, MYL1060, MYL1270
Structural features: structure with good rigidity, linear guideway, rotating-disk tool magazine, servo spindle.
Machine advantage: rapid traverse speed, high machining accuracy, good rigidity, smooth chip removal, high reliability, good versatility.
Be fit for machining all kinds of parts within machine's technical specification.
| Items |
|
MY-L850 |
MY-L1060 |
MY-L1270 |
| Spindle |
Spindle Taper Hole
(Model, Diameter) |
|
BT40/ø150 |
BT40/ø150 |
BT50/ø150 |
| Max speed of Spindle |
rpm |
8000 |
8000 |
8000 |
| Rated Power of Main Motor |
kw |
7.5 |
7.5/11 |
11/15 |
| Spindle Nose to Table |
mm |
110---610 |
170---670 |
180---680 |
| Spindle center to column front |
mm |
560 |
600 |
785 |
| Worktable |
Size |
mm |
500*1000 |
600*1300 |
700*1360 |
| Load-Bearing |
kg |
450 |
600 |
1000 |
| T Groove |
mm |
18 (5 lines) |
| Interval of T Groove |
mm |
90 |
100 |
122 |
| Feeding Servo Axis |
X/Y/Z Axis Travel |
mm |
800/500/500 |
100/600/600 |
1200/700/600 |
| X/Y/Z Axis Ball Screw |
|
4012 |
4012 |
5010 |
| X/Y/Z Axis Motor Connection |
|
Diretly Coupling |
| X/Y/Z Axis Motor Torque |
nm |
10/12/12 |
12/16/16 |
16/16/16 |
| X/Y Moving Speed |
m/min |
24 |
24 |
24 |
| Max Speed of Z Axis |
m/min |
12 |
12 |
12 |
| Max Cutting Speed |
m/min |
10 |
10 |
10 |
| Tool Magazine |
Tool Magazine Type |
|
Rotating-disk Type |
| Tool Magazine Capacity |
|
24 |
24 |
24 |
| Tool Shank Size |
|
BT40 |
BT40 |
BT50 |
| Max Diameter |
mm |
ø78 |
ø78 |
ø78 |
| Max Length |
mm |
300 |
300 |
300 |
| Accuracy |
Positioning Accuracy |
mm |
0.01/300 |
0.01/300 |
0.01/300 |
| Repositioning Accuracy |
mm |
0.0035 |
0.0035 |
0.0035 |
| CNC System |
|
Mitsubishi M70/ Fanuc/ KND
|
| Overall Dimensions |
Weight |
T |
5.5 |
7.5 |
9.0 |
| Dimension (L/W/H) |
mm |
2600*2500*2650 |
3000*2750*2800 |
3400*2950*2950 |
Minyo reserves the right to change above specifications due to technical innovation, which should be subject to the final order's technology agreement.
1. This machine adopts high-precision screw rod and screw bearing, which greatly enhance the axial rigidity, accuracy and high impact of the feed shaft.
2. All the main functioning parts of this machine are famous brand high-quality products, including spindle unit, rolling screw, linear guide, unclamping cylinder, lubrication device, tool magazine, coupling and screw bearing, etc.
3. The machine is finely assembled. All the moving parts are corrected and compensated by the laser interferometer and ball-bar, which implements the stability of working accuracy. |
|
|
|
|
 |
|
