Vertical CNC lathe
|
|
MY51 Series
 The machine features
MY514, MY516, MY519
Structural features: one-piece casting structure, linear guideway, vertical (horizontal) servo turret.
Machine advantage: rapid traverse speed, high machining accuracy, good rigidity, smooth chip removal, high reliability, good versatility.
Be fit for machining all kinds of plate/disk and short axle/shaft within machine's technical specification.

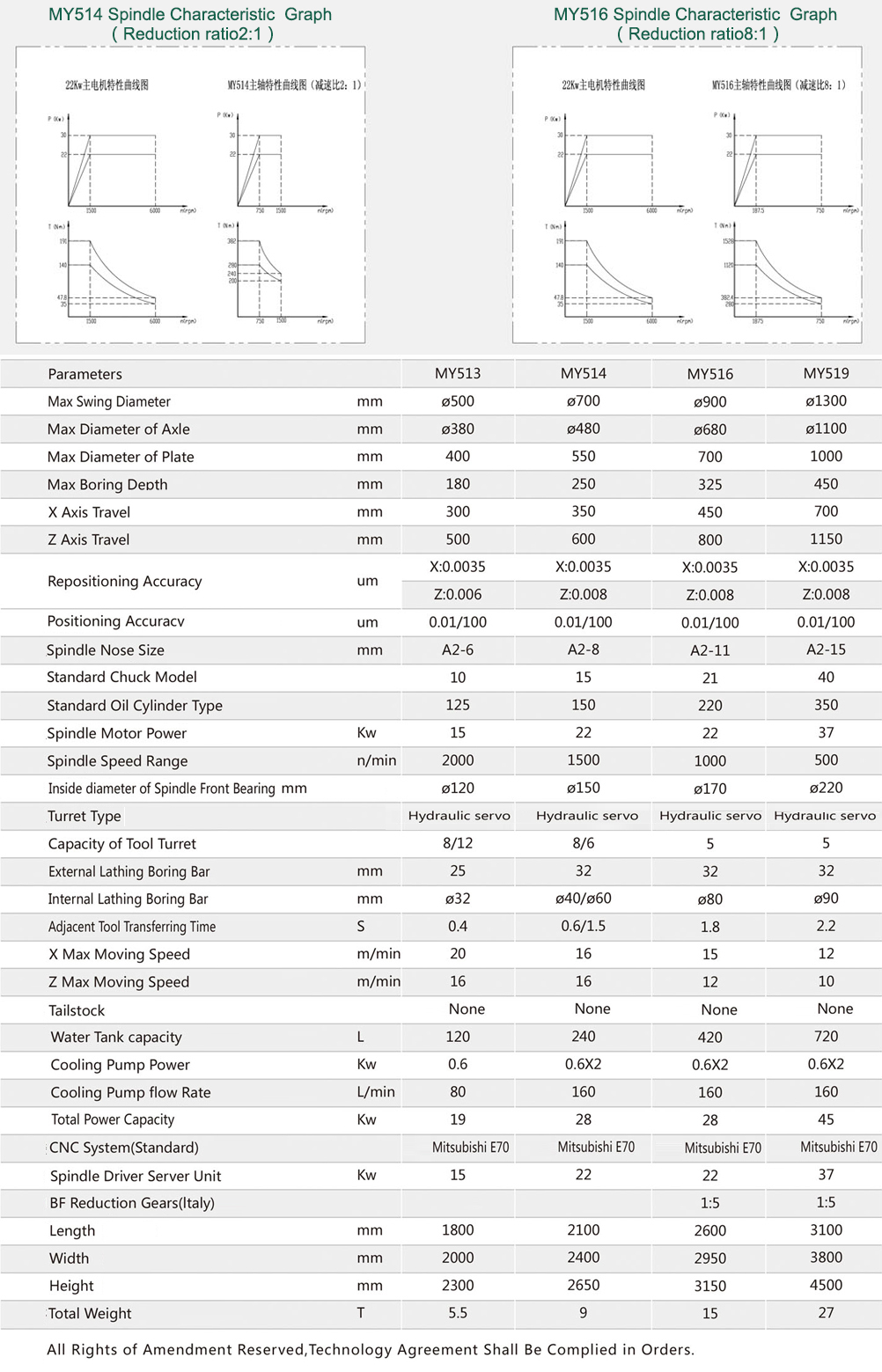

| Items |
|
MY513 |
MY514 |
MY516 |
MY519 |
| Max Swing Diameter |
mm |
ø500 |
ø700 |
ø900 |
ø1300 |
| Max Turning Diameter |
mm |
ø380 |
ø480 |
ø680 |
ø1100 |
| Max Turning Height |
mm |
400 |
550 |
700 |
1000 |
| Max Boring Depth |
mm |
180 |
250 |
325 |
450 |
| X Axis Travel |
mm |
300 |
350 |
450 |
700 |
| Z Axis Travel |
mm |
500 |
600 |
800 |
1150 |
| Repositioning Accuracy |
mm |
X: 0.0035 |
X: 0.0035 |
X: 0.0035 |
X: 0.0035 |
|
Z: 0.006 |
Z: 0.008 |
Z: 0.008 |
Z: 0.008 |
| Positioning Accuracy |
mm |
0.01/100 |
0.01/100 |
0.01/100 |
0.01/100 |
| Spindle Size |
mm |
A2-6 |
A2-8 |
A2-11 |
A2-15 |
| Standard Chuck Model |
inch |
10 |
15 |
21 |
40 |
| Standard Oil Cylinder Type |
|
125 |
150 |
220 |
350 |
| Spindle Motor Power |
Kw |
15 |
22 |
22 |
37 |
| Spindle Speed Range |
r/min |
2000 |
1500 |
1000 |
500 |
| ID of Spindle Front Bearing |
mm |
ø120 |
ø150 |
ø170 |
ø220 |
| Turret Type |
|
Horizontal hydraulic servo |
Horizontal/Vertical
hydraulic servo |
Vertical hydraulic servo
|
| Capacity of Tool Turret |
|
8/12 |
8/6 |
5 |
5 |
| Size of OD Turning Tool Bar |
mm |
25 |
32 |
32 |
32 |
| Size of Boring Bar |
mm |
ø32 |
ø40/ø60 |
ø80 |
ø90 |
| Adjacent Tool Transferring Time |
S |
0.4 |
0.6/1.5 |
1.8 |
2.2 |
| X Max Moving Speed |
m/min |
20 |
16 |
15 |
12 |
| Z Max Moving Speed |
m/min |
16 |
16 |
12 |
10 |
| Tailstock |
|
None
|
| Water Tank capacity |
L |
120 |
240 |
420 |
720 |
| Cooling Pump Power |
Kw |
0.6 |
0.6*2 |
0.6*2 |
0.6*2 |
| Cooling Pump Flow Rate |
L/min |
80 |
160 |
160 |
160 |
| Total Power Capacity |
Kw |
19 |
28 |
28 |
45 |
| CNC System |
|
Mitsubishi E70/ Fanuc/ KND
|
| Spindle Driver Server Unit |
Kw |
15 |
22 |
22 |
37 |
| BF Reduction Gears (ltaly) |
|
None |
None |
1:5 |
1:5 |
| Length |
mm |
1800 |
2100 |
2600 |
3100 |
| Width |
mm |
2000 |
2400 |
2950 |
3800 |
| Height |
mm |
2300 |
2650 |
3150 |
4500 |
| Total Weight |
T |
5.5 |
9 |
15 |
27 |
Minyo reserves the right to change above specifications due to technical innovation, which should be subject to the final order's technology agreement. |
|
|
|
|
 |
|
