CNC lathe with linear guideway, gang tool
|
|
MY160P MY200P Series
 The machine features
MY160P MY200P
Structural features: slant bed, linear guideway, gang tool.
Machine advantage: rapid traverse speed, high machining accuracy, good rigidity, smooth chip removal, few malfunction, high reliability.
Disadvantage: poor versatility.
Be mainly used for machining small size parts.

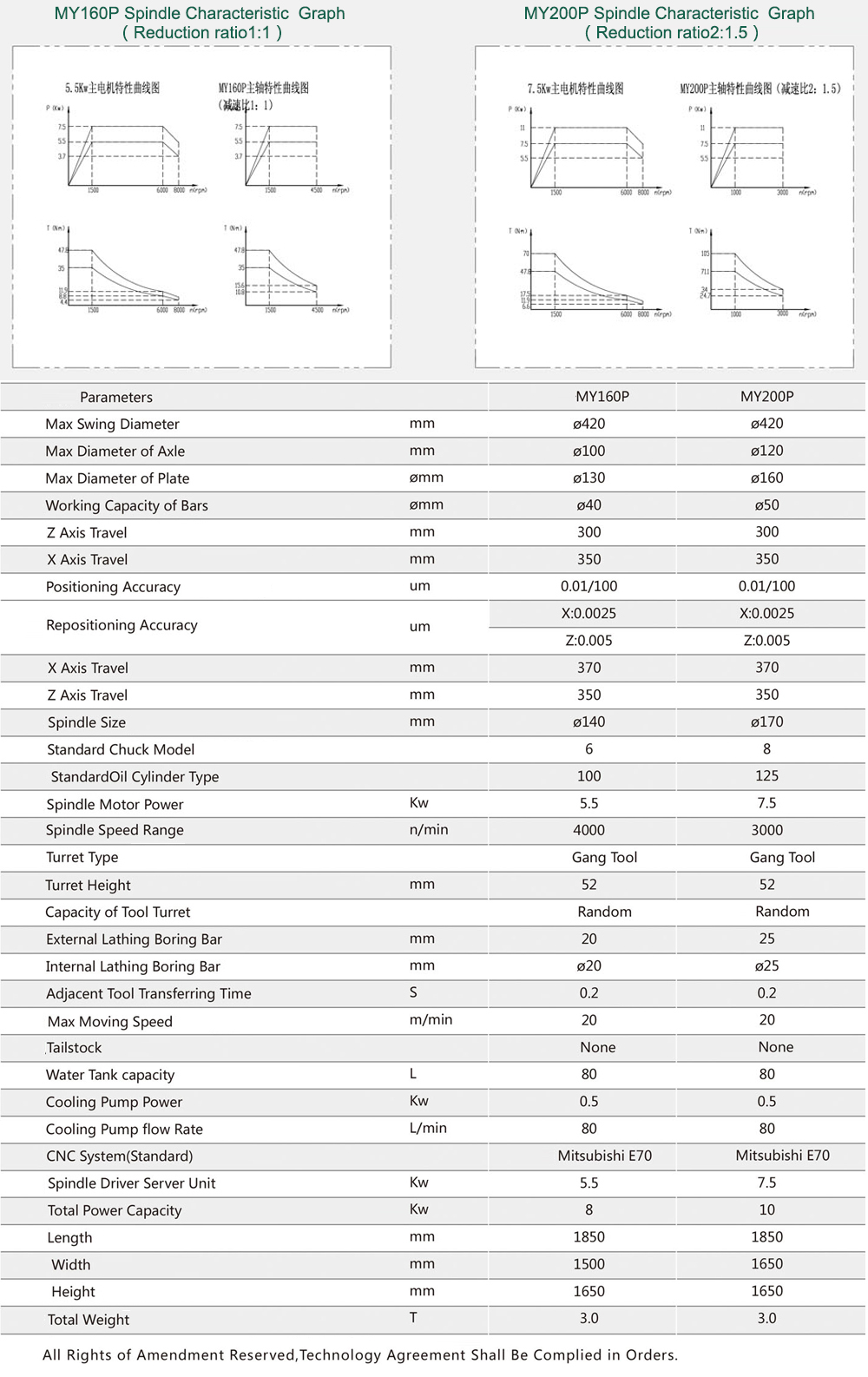

| Items |
|
MY160P |
MY200P |
| Max Swing Diameter |
mm |
ø420 |
ø420 |
| Max Diameter of Axle/Shaft |
mm |
ø100 |
ø120 |
| Max Diameter of Plate/Disk |
mm |
ø130 |
ø160 |
| Working Capacity of Bars |
mm |
ø40 |
ø50 |
| Z Axis Max. Effective Travel |
mm |
300 |
300 |
| X Axis Max. Effective Travel |
mm |
400 |
400 |
| Positioning Accuracy |
mm |
0.01/100 |
0.01/100 |
| Repositioning Accuracy |
mm |
X: 0.0025 |
X: 0.0025 |
|
Z: 0.005 |
Z: 0.005 |
| X Axis Max. Travel |
mm |
425 |
425 |
| Z Axis Max. Travel |
mm |
350 |
350 |
| Spindle Size |
mm |
ø140 |
ø170 |
| Standard Chuck Model |
inch |
6 |
8 |
| Standard Oil Cylinder Type |
|
100 |
125 |
| Spindle Motor Power |
Kw |
5.5 |
7.5 |
| Spindle Speed Range |
r/min |
4000 |
3000 |
| Turret Type |
|
Gang Tool
|
| Turret Height |
mm |
62 |
62 |
| Capacity of Tool Turret |
|
Random
|
| Size of OD Turning Tool Bar |
mm |
20 |
25 |
| Max Moving Speed |
m/min |
20 |
20 |
| Tailstock |
|
None
|
| Water Tank capacity |
L |
50 |
50 |
| Cooling Pump Power |
Kw |
0.25 |
0.25 |
| Cooling Pump Flow Rate |
L/min |
80 |
80 |
| CNC System |
|
Mitsubishi/ SYNTEC/ KND/ Fanuc
|
| Spindle Driver Server Unit |
Kw |
5.5 |
7.5 |
| Total Power Capacity |
Kw |
8 |
10 |
| Length |
mm |
1850 |
1850 |
| Width |
mm |
1600 |
1600 |
| Height |
mm |
1625 |
1625 |
| Total Weight |
T |
2.5 |
2.6 |
Minyo reserves the right to change above specifications due to technical innovation, which should be subject to the final order's technology agreement. |
|
|
|
|
 |
|
