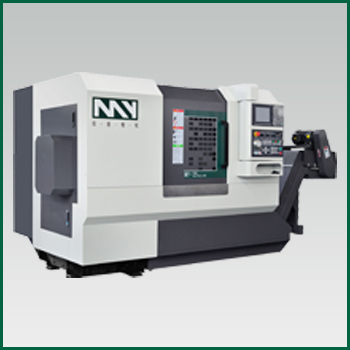

CNC lathe with linear guideway, triangular saddle
|
|
MY0 Series
 The machine features
MY20, MY25, MY35, MY45
Structural features: one-piece casting structure, linear guideway, triangular saddle, horizontal servo turret.
Machine advantage: rapid traverse speed, better machining accuracy, smooth chip removal, better rigidity, high reliability, good versatility, which create excellent cost performance for this series.
Be fit for machining all kinds of axle/shaft and plate/disk within machine's technical specification.
| Items |
|
MY20 |
MY25 |
MY35 |
MY45 |
| Max Swing Diameter |
mm |
ø420 |
ø500 |
ø650 |
ø800 |
| Max Diameter of Axle/Shaft |
mm |
ø200 |
ø250 |
ø350 |
ø450 |
| Max Diameter of Plate/Disk |
mm |
ø300/260 |
ø320 |
ø450 |
ø600 |
| Working Capacity of Bars |
mm |
ø49 |
ø49 |
ø69 |
ø85 |
| Max Cutting Length |
mm |
300 |
450/700 |
600/1000 |
700/1200 |
| Positioning Accuracy |
mm |
0.01/100 |
0.01/100 |
0.01/100 |
0.01/100 |
| Repositioning Accuracy |
mm |
X: 0.0035 |
X: 0.0035 |
X: 0.0035 |
X: 0.0035 |
|
Z: 0.005 |
Z: 0.005 |
Z: 0.005 |
Z: 0.005 |
| X Axis Travel |
mm |
200 |
260 |
320 |
400 |
| Z Axis Travel |
mm |
400 |
500/760 |
650/1080 |
800/1300 |
| Spindle Size |
mm |
ø170 A2-6 |
ø170 A2-6 |
ø220 A2-8 |
ø380 |
| Standard Chuck Model |
inch |
8 |
8 |
12 |
15 |
| Spindle Motor Power |
Kw |
5.5/7.5 |
7.5/11 |
11/15 |
18/22 |
| Spindle Speed Range |
r/min |
3500 |
3000 |
2000 |
1400 |
| Turret Type |
|
Hydraulic servo |
| Turret Height |
mm |
100 |
125 |
125 |
160 |
| Capacity of Tool Turet |
|
8/12 |
8/12 |
8/12 |
8/12 |
| Size of OD Turning Tool Bar |
mm |
25/20 |
25 |
25 |
32 |
| Size of Boring Bar |
mm |
ø32 |
ø32 |
ø40 |
ø50 |
| Adjacent Tool Transferring Time |
S |
0.5 |
0.5 |
0.6 |
1 |
| Max Moving Speed |
m/min |
20 |
20 |
20 |
20 |
| Tailstock Travel |
mm |
170 |
300/500 |
450/800 |
600/1000 |
| Tailstock Sleeve Travel |
mm |
90 |
90 |
100 |
120 |
| Tailstock Center |
|
3# |
4# |
5# |
5# |
| Cooling Pump Power |
Kw |
0.55 |
0.55 |
0.55 |
0.55 |
| Cooling Pump Flow Rate |
L/min |
80 |
80 |
80 |
80 |
| CNC System |
|
Mitsubishi E70/ Fanuc/ KND |
| Spindle Driver Server Unit |
Kw |
5.5 |
7.5 |
11 |
18 |
| Total Power Capacity |
Kw |
10 |
10 |
15 |
22 |
| Length |
mm |
1660 |
2200/2700 |
2400/3000 |
2800/3400 |
| Width |
mm |
1510 |
1750 |
1850 |
2000 |
| Height |
mm |
1600 |
1800 |
1800 |
1850 |
| Total Weight |
T |
2.5 |
3.5/4.5 |
4.2/5.8 |
6/7.5 |
Minyo reserves the right to change above specifications due to technical innovation, which should be subject to the final order's technology agreement. |
|
|
|
|
 |
|
